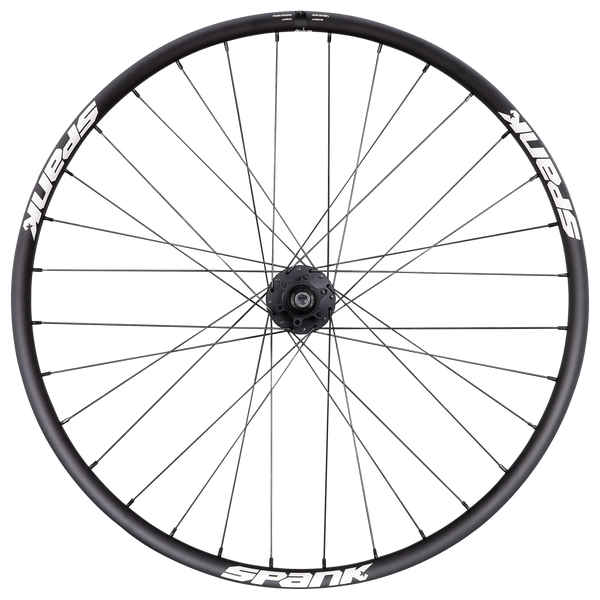

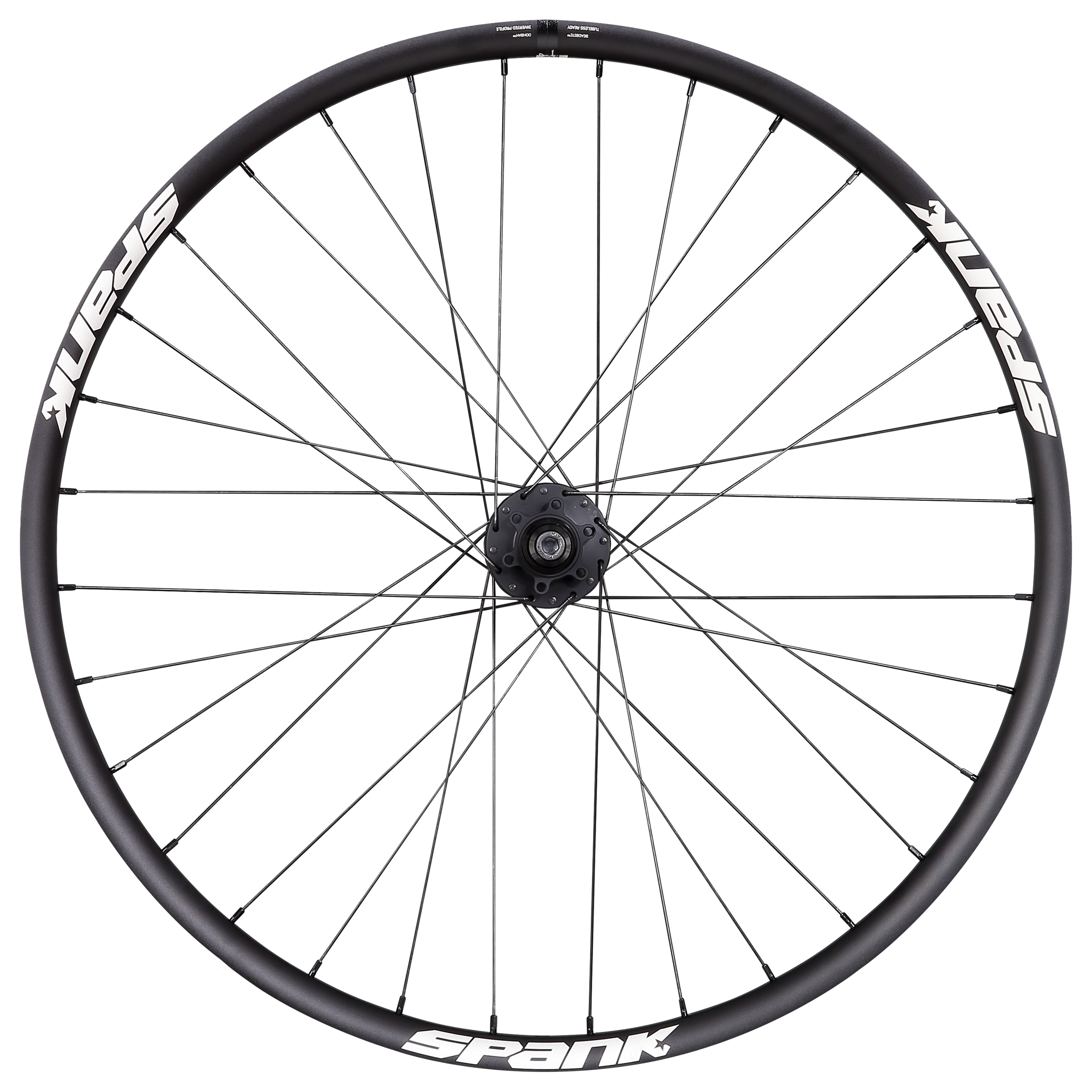

SPANK Race 33 Single Speed Rear Wheel (Bolt-On)
SKU: WHE5040
Regular price
$379.99
Shipping calculated at checkout
Sale - Discount Applied Automatically At Checkout
Pickup currently unavailable
Spike Race 33 Rim:
- A high-performance alloy rim designed for freeride, enduro and downhill race use
- Tubeless-ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
- 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
- The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
- Shot peen finish to increase fatigue life and make it more durable
The New SPANK SS-DJ HUB, featuring:
- Ultra-tough 5 bearing Single Speed rear hub for All Mountain, DJ, FR, Pumptrack, and BMX.
- Integrated 3mm 11T Cog Freehub (for 1/8” SS Chains)
- Female Axle, M10 Lock-down Bolts, Alloy End-Caps
- Wide Flange design eliminates dish in rear wheel, maximizing wheel strength & stiffness
FRONT WHEELS TO PAIR WITH:
 |
|---|
| SPIKE RACE 33 |
(Available factory standard in XD and Shimano HG. Micro spine freehubs available).
| HUB | HUB SPACING | BOOST | FREEHUB | HOLE COUNT | ADAPTER INCL. | WEIGHT | ERD | ETRTO | SPOKE LENGTH | SPOKE LENGTH | |
| 26" | HEX J TYPE | 12x142 | - | HG | 32H | 12x135 | 997g | 529++ | 559x28 | R-255 | L-258 |
| HEX J TYPE | 12x142 | - | XD | 32H | 12x135 | 989g | 529++ | 559x28 | R-255 | L-258 | |
| HEX J TYPE | 12x150 | - | HG | 32H | 12x157 | 1008g | 529++ | 559x28 | R-255 | L-258 | |
| HEX J TYPE | 12x150 | - | XD | 32H | 12x157 | 1000g | 529++ | 559x28 | R-255 | L-258 | |
| S/S BOLT ON | 10x135 | - | 11T | 32H | - | 1124g | 529++ | 559x28 | R-255 | L-258 | |
| 27.5" | HEX J TYPE | 12x142 | - | HG | 32H | 12x135 | 1038g | 554++ | 584x28 | R-266 | L-269 |
| HEX J TYPE | 12x142 | - | XD | 32H | 12x135 | 1030g | 554++ | 584x28 | R-266 | L-269 | |
| HEX J TYPE | 12x150 | - | HG | 32H | 12x157 | 1049g | 554++ | 584x28 | R-266 | L-269 | |
| HEX J TYPE | 12x150 | - | XD | 32H | 12x157 | 1041g | 554++ | 584x28 | R-266 | L-269 | |
| HEX J TYPE | 12x148 | BOOST | HG | 32H | - | 1044g | 554++ | 584x28 | R-266 | L-269 | |
| HEX J TYPE | 12x148 | BOOST | XD | 32H | - | 1036g | 554++ | 584x28 | R-266 | L-269 | |
| 29" | HEX J TYPE | 12x150 | - | HG | 32H | 12x157 | 1086g | 591++ | 622x28 | R-285 | L-288 |
| HEX J TYPE | 12x150 | - | XD | 32H | 12x157 | 1078g | 591++ | 622x28 | R-285 | L-288 | |
| HEX J TYPE | 12x148 | BOOST | HG | 32H | - | 1081g | 591++ | 622x28 | R-285 | L-288 | |
| HEX J TYPE | 12x148 | BOOST | XD | 32H | - | 1073g | 591++ | 622x28 | R-285 | L-288 |
CLASSIFICATION & INTENDED USE: ASTM 5
| ALL MOUNTAIN |
TRAIL |
ENDURO |
FREERIDE |
|---|---|---|---|
| ✔ | ✔ | - | ✔ |
| DOWNHILL | GRAVEL | XC | E-BIKE |
| ✔ | - | - | * |
* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline.)
HUMAN FACTOR
SPANK's recommendations for what body type and ride style this product is suited to.
| BODY WEIGHT & RIDE STYLE: | Heavy Rider | Medium Rider | Light Rider |
|---|---|---|---|
| Heavy Impact |
✔ | ✔ |
✔ |
|
Medium Impact |
✔ | ✔ |
✔ |
| Light impact |
✔ | ✔ | ✔ |
RIM SPECIFICATIONS
| HOLE COUNT: |
32 |
|---|---|
| INNER WIDTH (mm): |
28 |
|
OUTER WIDTH (mm): |
33 |
| PROFILE HEIGHT: |
22 |
| TIRE FIT |
1.9" to 2.5" |
BUILD SPECIFICATIONS
| BUILD: |
Handbuilt |
|---|---|
| HUB: | SPANK SS DJ Hub |
|
SPOKES: |
J-Hook, triple-butted 2.2/1.8/2.0 |
| NIPPLES: |
Brass external |
| LACING: |
3 cross lacing |
| VALVE: | F/V Presta |
| TUBELESS: | Tubeless taped & valved |
HUB SPECIFICATIONS:
| ENGAGEMENT: |
12.5 Degree |
|---|---|
| HOLE COUNT: |
32H J-Hook |
|
DISC MOUNT:
|
6-bolt |
| MATERIAL: |
CNC optimized forged alloy hub body, alloy axle, alloy freehub body |
