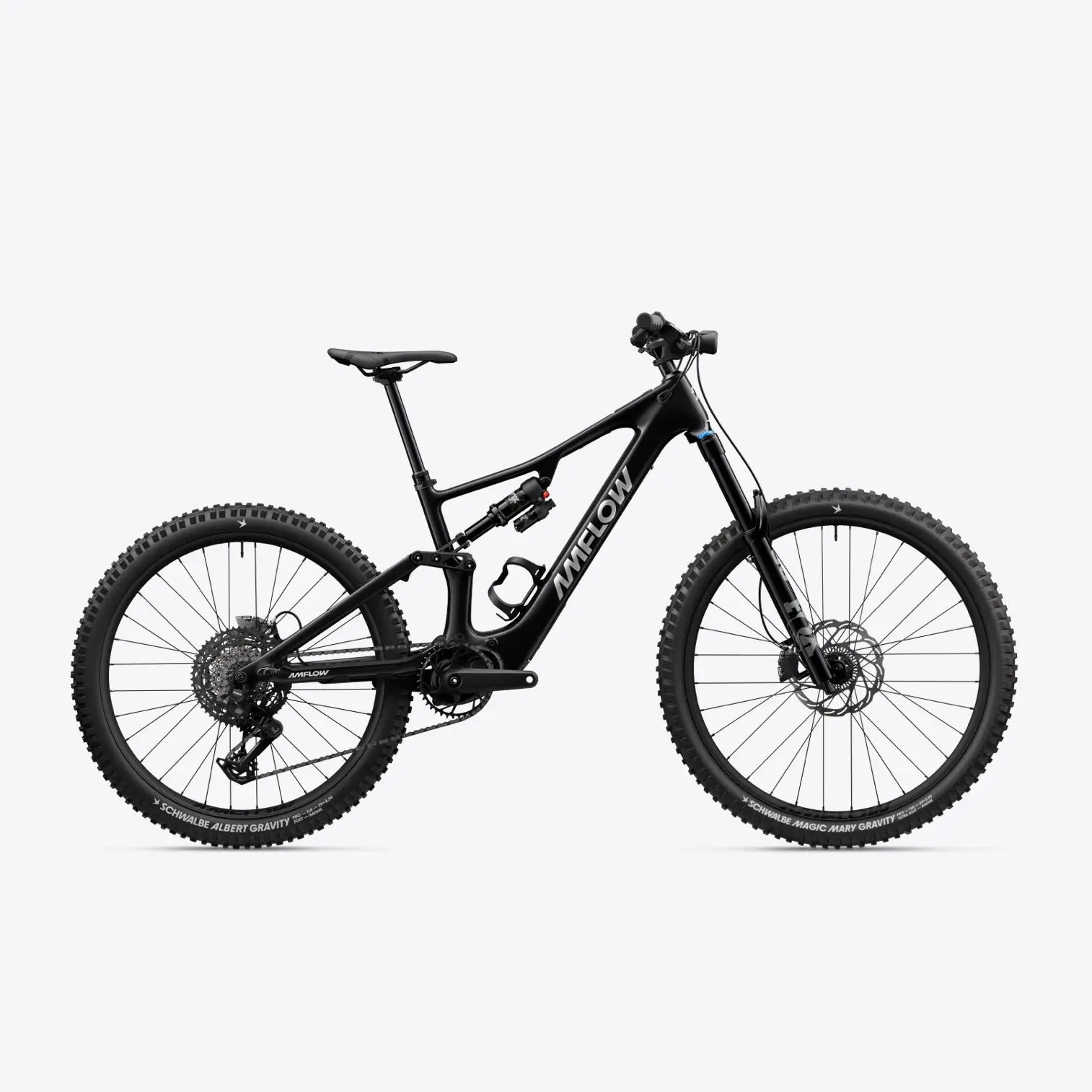

2027 Amflow PX Carbon
Shipping calculated at checkout
Pickup currently unavailable
Surging Power, Naturally Refined. The Avinox M2S Drive Unit uses sensors and smart algorithms for linear pedaling feel, with up to 150N·m max. torque. Whisper Quiet, Immersive Riding. Innovative compound planetary gears and a helical gear design reduce operating noise to as low as 45dBA for a quieter, more immersive ride. Charge Fast, Ride Free. A 700Wh high-capacity battery paired with 3x super-fast charging supports all-day epic rides and helps eliminates range anxiety. Versatile Geometry To Conquer Any Terrain. With up to 40 geometry combinations, it fine-tunes head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles.
Technical Specifications
| Component | Specification |
| FRAME | Amflow PX Carbon Frame Phantom Black |
| REAR SHOCK | Fox Float X Performance 210x55mm |
| FORK | Fox 36 Performance 160mm Grip 15x110mm |
| CRANKSET | Avinox SL Crank M/L: 155mm XL/XXL: 160mm |
| CHAIN | SRAM Eagle 70 Transmission Flattop Chain |
| CASSETTE | SRAM XS-1270 Eagle Transmission Cassette 10-52T |
| REAR DERAILLEUR | SRAM S1000 Eagle Transmission |
| SHIFTER | SRAM AXS Pod Controller |
| BRAKE CALIPERS | Magura Gustav Pro Hydraulic 4-Piston |
| FRONT BRAKE ROTOR | Magura Sensor Rotor 203mm 2.5mm |
| REAR BRAKE ROTOR | Magura Sensor Rotor 203mm 2.5mm |
| BRAKE LEVERS | Mugura Gustav |
| HANDLEBAR | Amflow Enduro Alloy Handlebar 40mm Rise, 800mm Width |
| STEM | Amflow Split Stem 35mm |
| SEATPOST | Amflow Dropper Post M/L: 190mm XL: 210mm XXL: 230mm |
| GRIPS | Amflow Enduro Grip 2 Lock-on Grips |
| SADDLE | Amflow Mountain Saddle |
| FRONT HUB | Alloy 2 Sealed Bearings, 15x110mm 32H 6-Bolt |
| REAR HUB | Alloy 4 Sealed Bearings, 12x148mm, 32H, 6-Bolt, 4 pawls 36T, HG |
| SPOKES | SAPIM E-Light |
| RIMS | Amflow XMA-30 |
| FRONT TIRE | Schwalbe Magic Mary Radial 29x2.5", Gravity Pro, Ultra Soft |
| REAR TIRE | Schwalbe Albert Radial, 27.5, Gravity Pro, Addix Soft |
| DRIVE UNIT | Avinox M2S Nominal: 130Nm Peak: 150Nm |
| BATTERY | Avinox Integrated 700Wh Battery |
| DISPLAY | 2-inch OLED Control Display |
| CHARGER | 12A/508W Avinox Fast Charger |
All specifications subject to change without notice
Sizing
Available in multiple sizes to fit a wide range of riders.
Contact us if you need help choosing the correct size.
