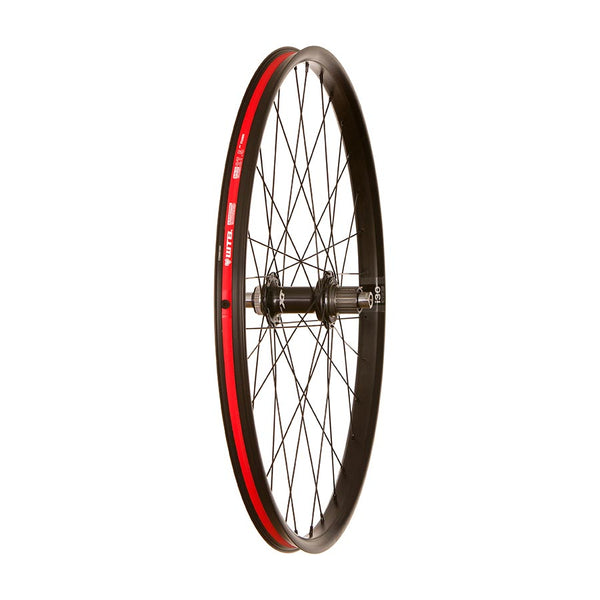

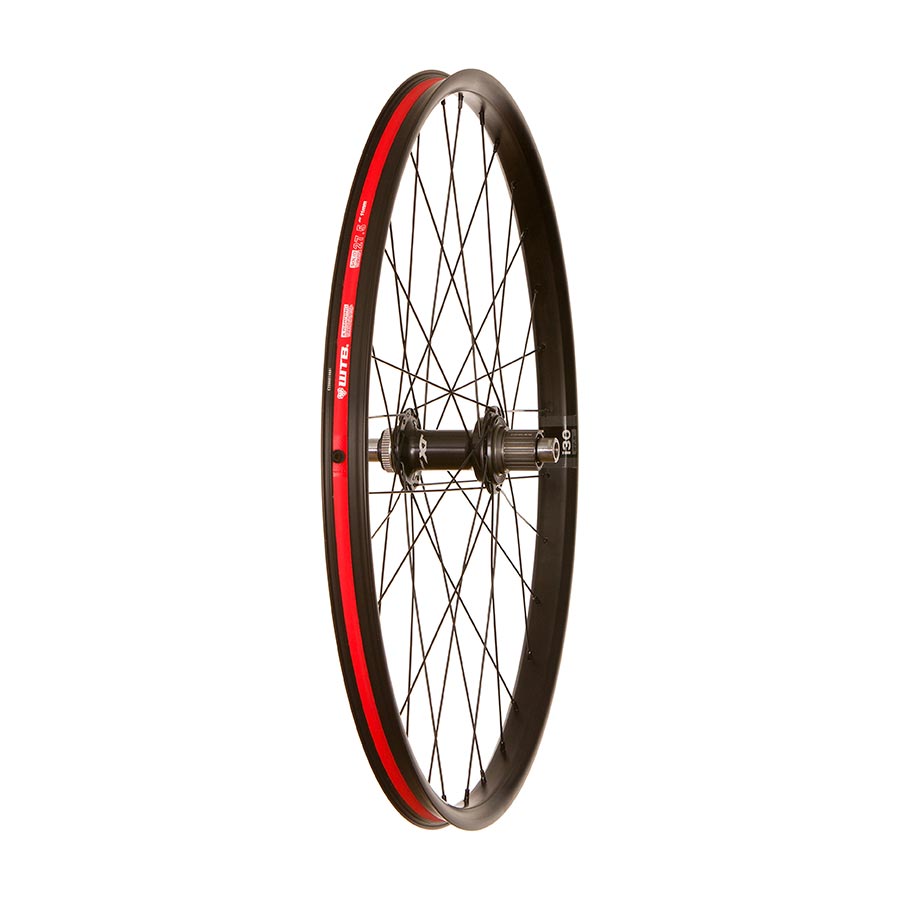

Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5'' / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline

Name: Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5'' / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline
Brand: Wheel Shop
SKU: H041833-04-275
Price: 299.99 USD
Availability: InStock

SKU: H041833-04-275

Regular price $299.99

Shipping calculated at checkout

Quantity

Sale - Discount Applied Automatically At Checkout

Expected Ship Date: Mon Dec 08

Rims: WTB HTZ i30 27.5"

ETRTO 584-30

Inner width: 30mm

6061 series aluminum

Asymetric and angled spoke hole drilling distributes spoke tension more evenly

Reinforced I-Beam profile

Strong sleeved joint

Drilled for Presta valve

TCS 2.0 Tubeless System compatible

Solid Strip included

Tubeless valve included

32 holes

Front hub: Shimano XT HB-M8110-B Boost

15x110mm (Axle not included)

Center Lock (6-Bolt adapter included)

Polished angular contact bearings

Contact sealed hub

Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)

Center Lock (6-Bolt adapter included)

Quick Engagement Freehub, 36 Points of Contact, 10 deg. engagement

HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)

MS compatible 12 Spd Shimano Micro Spline

Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Polyax Nipples (Black)

TECH SPECS

Hub Model	Shimano XT FH-M8130-B
Position	Rear
Wheel Tire Type	Tubeless Compatible
Hub Spacing	157mm
Wheel Diameter/ISO	27.5 / 584
Axle Type	12mm TA
Rim Internal Width	30mm
Spoke Type	Sapim Race
Rim Construction	Double wall Sleeved
Freehub Body	Shimano Micro Spline
Rim Color	Black
Rim Material	Aluminum
Rim Model	WTB HTZ i30
Rim inner width range	28-34.9mm
Skewers Included	No
Wheel-Brake Comp.	Disc Center Lock / IS 6-Bolt
Rim Drilling	32
Valve	Presta

Wheel Shop WTB HTZ i30 / Shimano XT FH-M8130-B Wheel Rear 27.5'' / 584 Holes: 32 12mm TA 157mm Disc Center Lock / IS 6-Bolt Shimano Micro Spline
